Helical Coil Sample Coolers

Sample water coolers that fits your needs

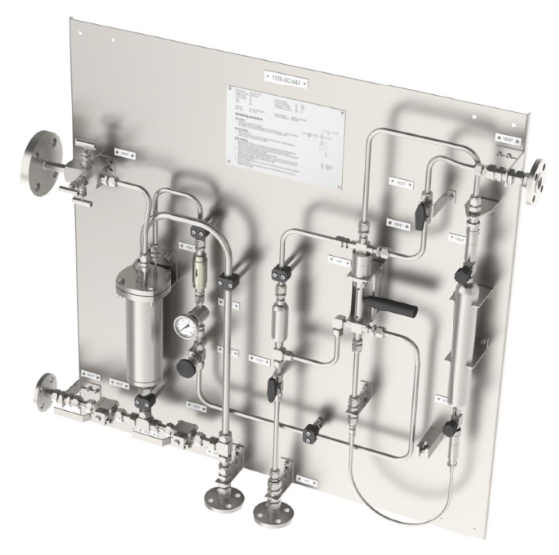

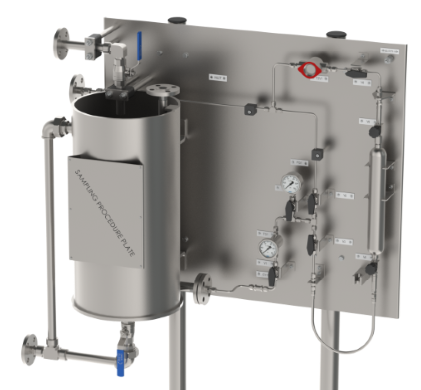

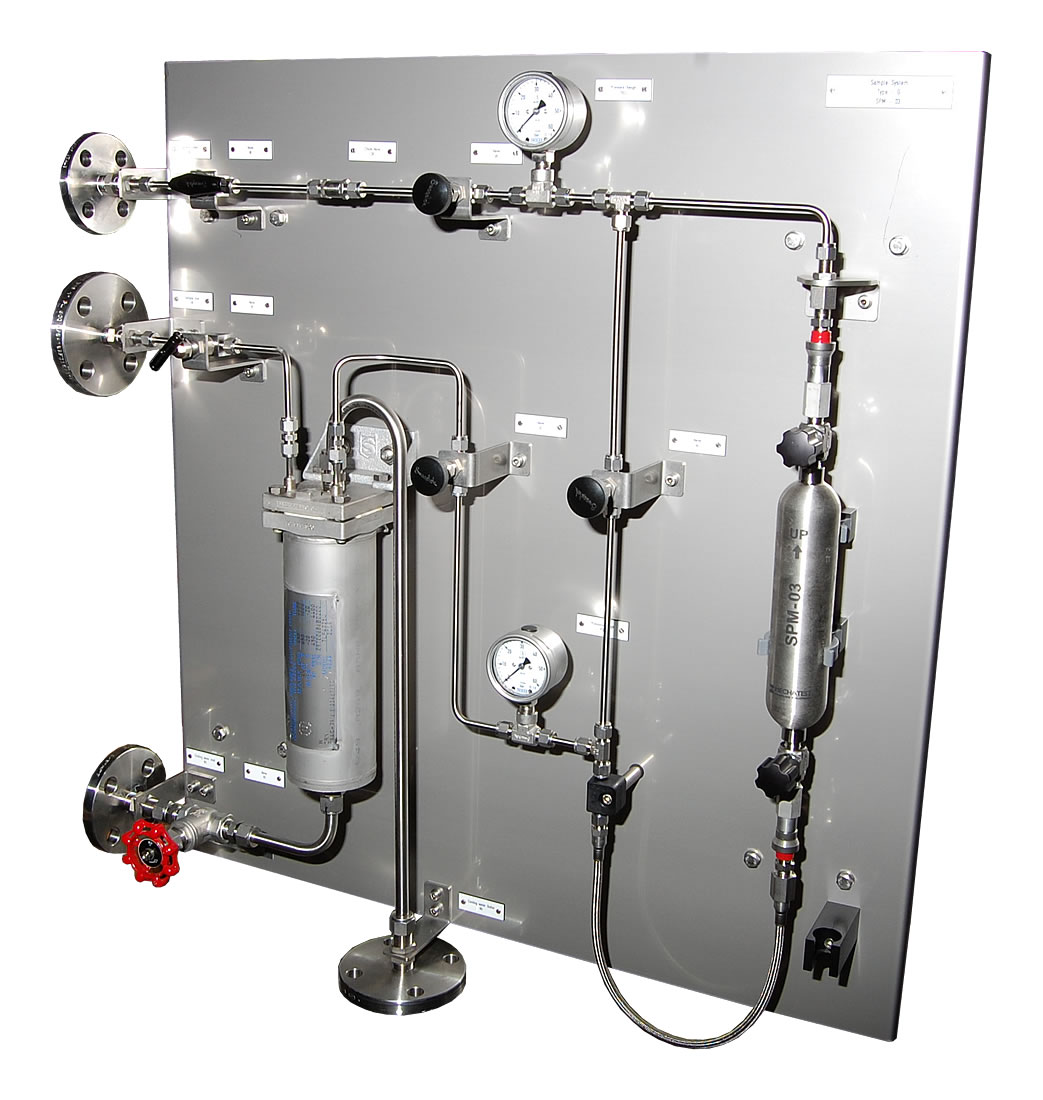

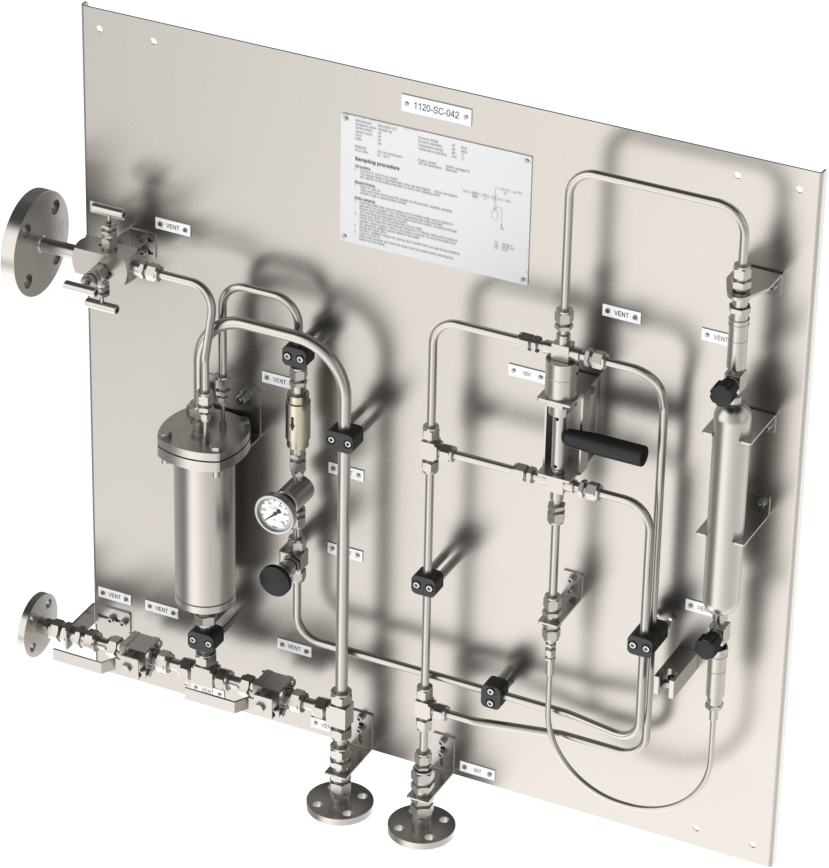

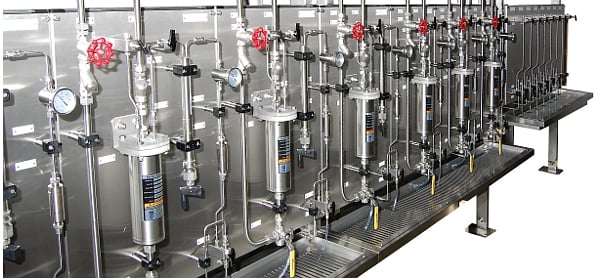

Using sample water coolers, we can bring down the product temperature in a sampling system for optimal conditions to the sample station or analyser.



Liquid and gas analysers need a sample in a specific temperature range. When this temperature is different from your process temperature, a cooler is sometimes required.




  • Flows from 1 L/hr to 340 L/h
  • Pressure ratings up to 345 bar (5,000 psi)
  • Temperature ratings up to 593°C (1100°F)
  • Available using single tube helical coil, multi-tube spiral tube, or tube-in-tube heat exchanger designs.
  • Sample tube/coil materials, SS304, SS316/316L or S.Duplex, Alloy 625 / 825 (Inconel), Monel 400, Hastelloy C276
  • Tube/coils in 6 mm or 1/4" and 1/2" OD
  • Specific water chemistry could dictate different materials for improved corrosion resistance, e.g. Alloy 600 for high chlorides in the cooling water.
  • Sample coolers with NACE MR0175 or NACE MR0103 standards for sour gas or liquid (H2S) applications.

To cover the difference in cooling requirements in the industry, Mechatest offers a wide variety of helical sample coolers. Principle is a single continuous tube is helically coiled and fitted in a shell. A variety of materials, diameters and lengths are available to suit most applications. Based on the type of sampling product, process temperature and pressure, coolers can be customized to fit the situation. We offer a width range of helical coil sample coolers, Mechatest is Herpi coolers distributor and have partnership with Sentry. Liquid and gas analysers need a sample in a specific temperature range. When this temperature is different from your process temperature, a cooler is mostly required.

  • Specific water chemistry could dictate different materials for improved corrosion resistance, e.g. Alloy 600 for high chlorides in the cooling water.
  • Mechatest helical coil sample coolers are suitable for instrumentation, sample conditioning and analyser system applications. Design accordingly ASME PTC 19.11.
  • Specific water chemistry could dictate different materials for improved corrosion resistance, e.g. Alloy 600 for high chlorides in the cooling water.

Applications will found in the Petrochemical and Chemical industry, products to be sampled are;

  • ...
  • ASME PTC 19.11.
  • ASTM D 4057
  • ASTM D1265-05
  • NACE MR0175 or MR0103
Check our list of all specific "sampling" codes & standards. goto codes & standards


Mechatest Helical coil Sample Coolers

Mechatest Sample Coolers

Sample tube/coil materials;

  • SS304
  • SS316/316L
  • S.Duplex
  • Alloy 625 / 825 (Inconel)
  • Monel 400
  • Hastelloy C276
  • Tube/coil in 6 mm or 1/4" OD

Delivery from stock!

Download
More information Mechatest Coolers
Mechatest cooler type 80-05.pdf
Adobe Acrobat Document 273.6 KB

Herpi Steam Coolers - Mechatest Sampling Solutions

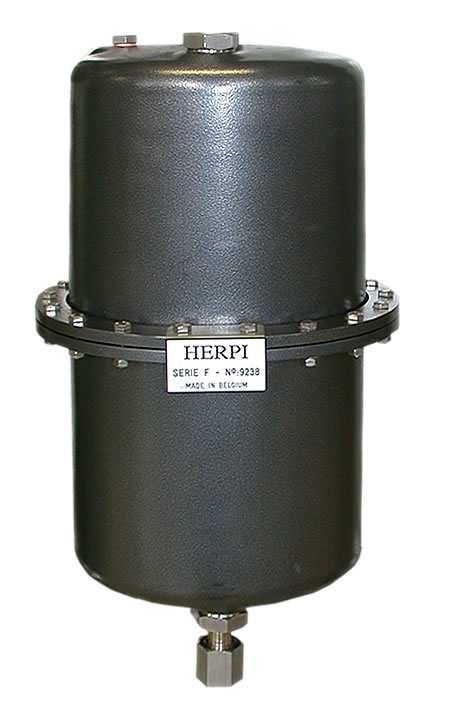

Herpi Steam Coolers

Herpi helical coil sample coolers are specific designed for steam applications as alternative on Dr. Thiedig coolers. Design accordingly ASME PTC 19.11.

Sample tube/coil materials;

  • SS304
  • SS316/316L
  • Tube/coil in 10 mm OD

Delivery from stock!

Download
More information Herpi Coolers
Herpi Sample Cooler Type-F.pdf
Adobe Acrobat Document 107.8 KB

Sentry Steam Coolers - Mechatest Sampling Solutions

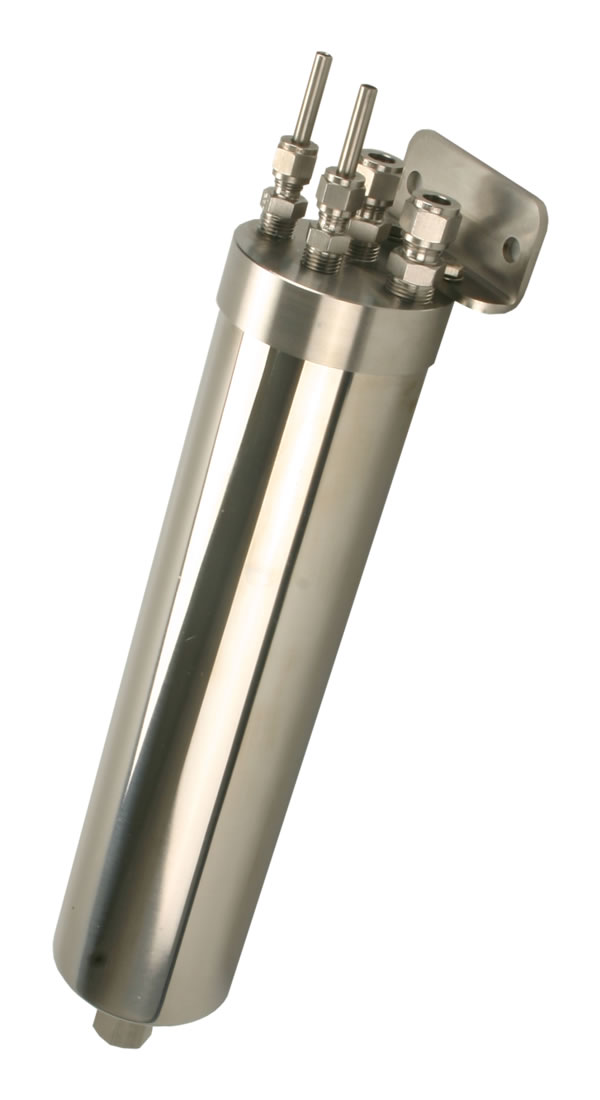

Sentry Sample Coolers

Sentry helical coil sample coolers are compact design for steam applications. Design accordingly ASME PTC 19.11.

Sample tube/coil materials;

  • SS316
  • Alloy 625 (Inconel)
  • Tube/coil in 1/4", 3/8" or 1/2" OD

Delivery from stock!



The TR and FR series are highly efficient and most popular sample coolers since they provide maximum cooling surface area in a compact space.



Mechatest deliver Sentry sample coolers from stock!

Download
More information Sentry Coolers
Sentry Sample Coolers by Mechatest.pdf
Adobe Acrobat Document 1.4 MB
