Inline Flow Thru Liquid Sampler

Inline samplers for liquid sampling

MBS-A7



Mechatest Inline sampling solutions - Flow Thru Liquid Sampler typical for pipeline and loading arm sampling. The inline flow thru sampling system consists of a full flow process diameter sample valve that allows for continuous flow through a pipeline.


Easy to install and operate, the sample flows into the sample bottle by opening a needle valve. The inline flow thru sampler can be used in a lot of applications but mostly mounted into piping systems, this type of sampler is the best solution for loading arm sampling.

Mechatest offers a broad line of flow thru liquid sampling solutions, all available in a wide range of materials and fully compatible with the requirements of the Oil & Gas, Petro-Chemical and Chemical industries.

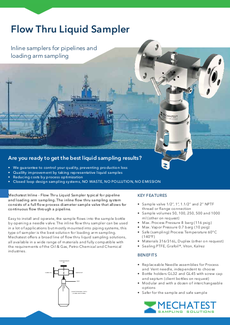

Mechatest Flow Thru Liquid Sampler - Inline sampler loading arm sampling -  - closed sampling Hydrocarbon liquids - Dopak DPM


  • Sample volumes 50, 100, 250, 500 and 1000 ml (other on request)
  • Max. Process Pressure 8 barg (116 psig)
  • Max. Vapor Pressure 0.7 barg (10 psig)
  • Safe (sampling) Process Temperature 60°C (140°F)
  • Made from forging 316/316L, Duplex (other on request)
  • Sample valve NPT thread or flange connection 1/2", 1", 1.5" and 2"
  • Wide variety of sealing materials; PTFE, Grafoil®, Viton, Kalrez, NBR, EPDM
  • All samplers can comply with NACE MR-01-75 / MR-01-03 standards, for sour applications

The flow thru sampling system consists of a full flow process diameter sample valve that allows for continuous flow through a pipe line. Against the competition the Mechatest flow thru sampler body and valve is made from forging 316/316L bar material or higher grade Alloy with the advantage that both mechanical properties and corrosion resistance are much higher to those of the “equivalent” wrought grades.

The rising stem sample valve allows the operator to control the flow of the sample being dispensed into the sample bottle. Rising stem needle valve with Ceramic stem ball tip Al2O3, superior hardness prevents deformation of the sealing tip and wear, significantly increasing the lifetime of the product for isolation purposes. This system can be used for medium pressures, temperatures and high viscous fluids where a continuous flow loop is needed. This flow thru sample valve is mostly combined with our ECO Needle Sampler with glass bottle, the process pressure pushes the sample through the valve into the bottle via a sample needle. Optional with Process Needle Purge connection, zero dead volume is ensured.

  • Replaceable Needle assemblies for Process and Vent needle, independent to choose in smaller or larger sizes.
  • Bottle holders GL32 and GL45 thread bottles with screw cap and septum (client bottles on request)
  • Most innovative liquid bottle sampler solution on the market
  • Modular and with a dozen of interchangeable options
  • Closed Loop and emission free sampling
  • Safer for the operator and environment, prevent pollution
  • Safer for the sample and safe sample
  • Easy in operation and Low maintenance
  • Options: Panel-mounted and protection cabinets with heater
  • Single phase liquid samples
  • Toxic liquid samples
  • Dangerous liquid samples
  • Volatile liquid samples
  • Mostly refined (commercial) gas oil, diesel oil,fuels, lubricating oil
  • Water / condensate samples (tap, brackish, saline, demi)
  • All samplers can comply with NACE MR-01-75 / MR-01-03 standards, for sour liquid sample applications.
  • Acid samples • Amine samples • Alcohols • Aromatics • Benzene • Bio-fuel • Brine Water • Chemical mixture • Cumene • DCE (DiChloorEthaan) • Glycol • Gasoline • Hydrocarbons • Ketone • Kerosene • Naphtha • Paraffins • Solvents • Toluene • Xylene • etc.
  • Safety sleeve around bottle (SS316 or POM)
  • Spring return handles on valves
  • Safety relief devices for overpressure protection
  • Lockable handles
  • Activated carbon filters on the venting outlet
  • On mounting plate or in protection enclosures
  • Drain or drip trays with flange connections
  • Connection types and sizes
  • Various materials
Liquid sampling - Inline liquid bottle sampler - Flow thru liquid sampler - Loading arm liquid sampler Mechatest - closed sampling Hydrocarbon liquids - Dopak DPM


Liquid sampling - 2" Inline liquid bottle sampler - Flow thru liquid sampler - Loading arm liquid sampler - Mechatest Bottle Sampler type MBS-A7 - closed sampling Hydrocarbon liquids - Dopak DPM

On-Off Liquid Bottle Sampler, Bypass Liquid Bottle Sampler, Back Purge Liquid Bottle Sampler, Needle Purge Liquid Bottle Sampler, Flow Thru Liquid Bottle Sampler, Piston Valve Liquid Bottle Sampler, GC Vial Liquid Bottle Sampler

Liquid sampling - Inline liquid bottle sampler - Flow thru liquid sampler with bottle cap septa - Liquid Sampler configuration - Mechatest Bottle Sampler MBS

Liquid sampling - Inline liquid bottle sampler - Flow thru liquid sampler configuration - Mechatest Bottle Sampler MBS



Inline - Flow Thru 1/2" Liquid Sampler Mechatest
Inline - Flow Thru 1/2" Liquid Sampler

Flow Thru Liquid Sampler Cabinet Mechatest
Inline - Flow Thru 1" Liquid Sampler Cabinet

Mechatest Inline Flow Thru Liquid Sampler 0.5 - 2 inch
Inline - Flow Thru 1.5" Liquid Sampler - Loading arm sampling

Inline - Flow Thru 2" Liquid Sampler Mechatest
Inline - Flow Thru 2" Liquid Sampler
