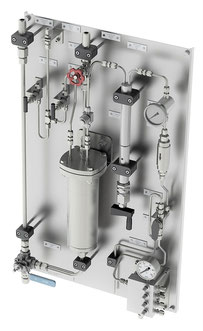

Steam sampling system


The steam sampling system by Mechatest is designed for handling high-pressure steam and hot water samples. This system comes in 7 main varieties, each with more than 30 options. For apllications Demi Water, Feedwater, Condensate, Boiler Water, LP Drum Water, LP/HP Steam, Life Steam, Main Steam Demi Water, Feedwater, Condensate, Boiler Water, LP Drum Water, LP/HP Steam, Life Steam, Main Steam for power stations. There is always a suitable combination for any steam application. We even perform on-site assembly anywhere in the world. As an independent System Integrator our main activities are the complete design, engineering, procurement, assembly and integration of steam and water sampling, conditioning, and analysis systems for the power cycle industry, we design accordingly to VGB/DGRL and ASME PTC 19.11 which discuss the methods and instrumentation for testing boiler make-up and feedwater, steam, and condensate in relation to performance testing.

Compose your own steam sampling system with additional components

Configuring a steam sampling system starts by choosing a temperature and pressure level matching your steam system using our easy Mechatest Steam Panel Configurator.   Subsequently,  the main varieties can be  customized by  choosing optional components.

Mechatest systems are suitable for high temperature steam up to 600 °C (1100 °F)  and 345 bar(g)  (5000 psi).



Steam apllications

  • Demi Water
  • Feedwater
  • Condensate
  • Boiler Water
  • LP Drum Water
  • LP/HP Steam
  • Life Steam
  • Main Steam
  • Demi Water
  • Feedwater
  • Condensate
  • Boiler Water
  • LP Drum Water
  • LP/HP Steam
  • Life Steam
  • Main Steam
  • for power stations.

Our specialists will help you make the final decision

When you have finalized your configuration, we offer the possibility to verify all details with our engineers because we understand sampling is not everybody’s core business. Our team of experienced professionals is available for assistance.



Contact us today for more information

Start selecting the equipment you need for proper (steam) sampling today by using our configurator or call Mechatest at +31 (0)15 – 310 51 83. Together, we will find, or create, a solution that perfectly suits your needs. A more efficient process starts at Mechatest.
