Isokinetic Sampling Nozzle Form



Please complete one Order Form for each different application.

If you need help, please do not hesitate to contact us!

Contact details

process nozzle specifications

Note: Please fill out the fields marked with an asterisk.



conversions

Mass flow rate is the mass of substance which passes through a given surface per unit time. Its unit is mass divided by time, so kilogram per second in SI units, and slug per second or pound per second in US customary units.

1 kg/h = 2.204623 lb/h

1 lb/h = 0.453592 kg/h



Pressure is the force per unit area acting on a surface in a direction perpendicular to that surface.

1 bar = 14.50377 psi

1 psi = 0.06894757 bar



Distance

1 inch = 25.4 mm

1 mm = 0.03936996 inch

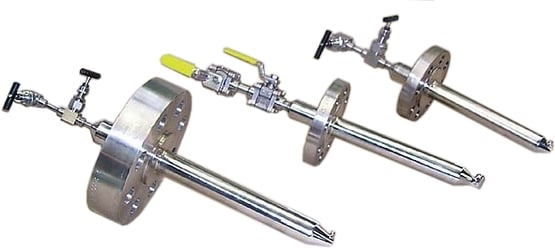

EPRI Isokinetic Steam Sample Nozzles - Mechatest
EPRI Isokinetic Steam Sample Nozzles - Mechatest

Flanges Dimensions ASME/ANSI B16.5 - Class 150 to 2500

Flange dimensions are determined by the pipe size and the pressure class required for the application. Flanges are standardized according publications from organizations like ASME, MSS, API and others.



Nozzle/Flanges dimensions according to ASME/ANSI B16.5

Flanges are classified as per ASME B16.5 standard. The pressure rating of flange ranges from 150# to 2500#. The term "lb", "class" and "#" are used interchangeably to designate the pressure rating of the flange. The fact is that 150 lb has no relation to 150 psi and so does the 300 or 600 lb does not correlate to 300 or 600 psi pressure rating. Pressure rating of the flange depends on the material (A105, stainless, nickel alloy etc.), the heat treat condition and pressure "class". Here we will use the term "class" to NOT confuse it with pressure "rating".



ASME B16.5 refers to nominal pipe sizes (NPS) from ½" to 24".

Nominal Pipe Size (NPS) is a North American set of standard sizes for pipes used for high or low pressures and temperatures. "Nominal" refers to pipe in non-specific terms and identifies the diameter of the hole with a non-dimensional number (for example – 2-inch nominal steel pipe" consists of many varieties of steel pipe with the only criterion being a 2.375-inch (60.3 mm) outside diameter). Specific pipe is identified by pipe diameter and another non-dimensional number for wall thickness referred to as the Schedule (Sched. or Sch., for example – "2-inch diameter pipe, Schedule 40"). NPS is often incorrectly called National Pipe Size.

Most countries in Europe mainly install flanges according to standard DIN EN 1092-1 (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange



The gasket type and bolt type are generally specified by the standard(s); however, sometimes the standards refer to the ASME Boiler and Pressure Vessel Code (B&PVC) for details (see ASME Code Section VIII Division 1 – Appendix 2). These flanges are recognized by ASME Pipe Codes such as ASME B31.1 Power Piping, and ASME B31.3 Process Piping.
